VIDEO CONVERTER PC TO TV

• Sangat sesuai untuk persembahan multimedia menggunakan Microsoft Powerpoint dan CD interaktif yang tidak boleh dimain semula oleh DVD/VCD Player.
• Permainan Video dan melayari internet dengan paparan lebih besar.

• Memberi paparan yang lebih besar dan kualiti standing DVD dengan paparan sehingga 1280x1024@60h
• Mudah di pasang dan digunakan, sekali pasang terus boleh guna tanpa perlu setting lain.
• Saiz kecil dan dilengkapi USB power supply.

RAJAH DIAGRAM PC TO TV CONVERTER

HARGA HANYA RM150...UNTUK TEMPAHAN DAN DEMO PRODUK SILA ISI BORANG PESANAN DI BAWAH ATAU SMS: 014-8315318, KAMI AKAN CUBA ATURKAN.

PC to TV Converter

PC to TV Converter

Want to hook up your computer to your TV or projector but your they are without a VGA input? Then LKV2000 is your solution. LKV2000 converts PC VGA to composite (Yellow RCA) and/or S-video TV display signal. It is with a VGA pass through so that you can keep your computer monitor connected while sending a signal to the TV. All outputs are loopthrough, display simultaneously. It is with fine tuning control to adjust the picture to your preference. It draws power from an available USB port using a supplied USB power cable. No external power supply is needed.

It is a good and cheap solution for family kara OK from PC to TV, and PC to a Optoma Pico PK101.

Features

-1 Input: 1 X VGA;
-3 Loop-through Outputs: 1 X VGA, 1 X Composite Video, 1 X S-video;
-PC VGA resolution: 640X480 (60/72/75/85Hz), 800X600 (60/75Hz), 1024X768 (60/75Hz). Higher resolutions are supported, while the lower the resolution is, the better the picture effect will be.
-On Screen Display (OSD);
-Plug and Play. No software driver is needed;
-Both PAL / NTSC are compatible;
-HSIZE, VSIZE, BRIGHTNESS, CONTRAST, HUE, SATURATION, SHARPNESS and OSD -BACKGROUND color are adjustable.
-It is powered by USB port of PC host. When the USB port of the PC host fails to function, a DC 5V external power supply is optional.
-Portable Size: 98mm(L)x58mm(W)x32mm(H).

Note: LENKENG is capable of providing OEM & ODM service as per customer design.

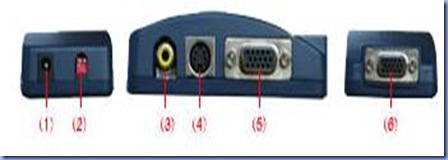

Connection Image

Item	Spec.
(1)DC 5V	To connect PC USB port or DC 5V external power supply
(2)switch	Video system PAL/NTSC switch
(3)Video Out	To connect Composite Video display
(4)S-Video Out	To connect S-Video display
(5)VGA Out	To connect PC monitor LCD
(6)VGA In	To connect PC Host

FAQ

1.No VGA Output is displayed.
Please check power supply and all cables are rightly connected.

2.No Composite Video or S-Video output.
Please check the RCA cable and s-video cable is in good condition and rightly connected; and the composite video or s-video display devices are switched to the right mode.

3.VGA output picture is not good. It may be caused by insufficient power from USB port.
Please try to connect a DC 5V external power supply. Or you can try to change PC resolution and refresh rate.

HARGA HANYA RM 150/UNIT TERMASUK KOS PENGHANTARAN. SILA IS BORANG PESANAN UNTUK TEMPAHAN PRODUK ATAU SMS 014-8315318.
